MII71a2 - MIIm 2 poles - Integrated inverted single pahse motors

MADP 2/12 poles

Motori vettoriali

MII71a2

Integrated inverted single pahse motors

Code	Power KW	Current A (V.230)	Max current A (V.230)	Torque Cn Nm
MII71a2	0,26	1.3	2.6	0,85

Availables mounting types

MIIB3

MIIB5

MIIB14

MIIB3
MIIB5
MIIB14

TYPE	A	B	C	G	H	K	X	U	U1	L	L1	N	Y	Z
MII71 Mono	112	90	45	195	71	7	12	108	136	348	318	92	124	138
MII71 Tri	112	90	45	195	71	7	12	108	136	348	318	92	124	138
MII80	125	100	50	221	80	9.5	17.5	125	154	390	350	110	141	156
MII90L	140	100	56	236	90	9.5	17.5	130	174	410	360	110	146	176
MII100	160	140	63	257	100	11.2	21.2	175	192	470	410	110	157	194
MII112	190	140	70	281	112	11.2	21.2	175	224	490	430	110	170	220
MII132s	216	140	89	327	132	11.2	21.2	180	260	*	*	124	195	256
MII132L	216	178	89	327	132	11.2	21.2	218	260	*	*	124	195	256
* MII132 in allestimento - in preparation

TYPE MEC	a	b	c	d	e	f	g	h	t
MII71*	11	23	M4	10	14	15	4	4	12,5
MII71	14	30	M5	13	18	20	5	5	16
MII80	19	40	M6	16	22	30	6	6	21,5
MII90	24	50	M8	20	28	35	8	7	27
MII100	28	60	M10	25	35	45	8	7	31
MII112	28	60	M10	25	35	45	8	7	31
MII132	38	80	M12	32	44	60	10	8	41

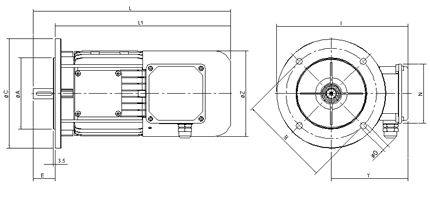

TYPE	A	B	C	G	I	L	L1	N	Y	Z
MII71 Mono	95	115	140	10	204	346	316	92	124	138
MII71 Tri	110	130	160	10	204	395	365	92	124	138
MII80	130	165	200	12	241	384	344	108	141	156
MII90L	130	165	200	12	246	415	365	108	146	176
MII100	180	215	250	14,5	282	534	474	108	157	194
MII112	180	215	250	14,5	295	576	516	108	170	220
MII132s	230	265	300	14,5	345			122	195	256
MII132L	230	265	300	14,5	345			122	195	256
MII112-MII132 in allestimento - in preparation

TYPE MEC	a	b	c	d	e	f	g	h	t
MII71*	11	23	M4	10	14	15	4	4	12,5
MII71	14	30	M5	13	18	20	5	5	16
MII80	19	40	M6	16	22	30	6	6	21,5
MII90	24	50	M8	20	28	35	8	7	27
MII100	28	60	M10	25	35	45	8	7	31
MII112	28	60	M10	25	35	45	8	7	31
MII132	38	80	M12	32	44	60	10	8	41

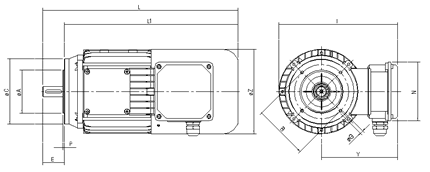

TYPE	A	B	C	G	I	L	L1	N	Y	Z
MII71 Mono	60	75	90	M5	192	346	316	92	124	138
MII71 Tri	70	85	105	M6	192	395	365	92	124	138
MII80	80	100	120	M6	218	384	344	108	141	156
MII90L	95	115	140	M8	233	415	365	108	146	176
MII100	110	130	140	M8	253	534	474	108	157	194
MII112	110	130	160	M8	278	576	516	108	170	220
MII132s	130	165	200	M10	323			122	195	256
MII132L	130	165	200	M10	323			122	195	256
MII112-MII132 in allestimento - in preparation

TYPE MEC	a	b	c	d	e	f	g	h	t
MII71*	11	23	M4	10	14	15	4	4	12,5
MII71	14	30	M5	13	18	20	5	5	16
MII80	19	40	M6	16	22	30	6	6	21,5
MII90	24	50	M8	20	28	35	8	7	27
MII100	28	60	M10	25	35	45	8	7	31
MII112	28	60	M10	25	35	45	8	7	31
MII132	38	80	M12	32	44	60	10	8	41
